Sensor Data Processing Pipeline

Have uv? ⚡

If you have uv installed, you can instantly open this page as a Jupyter notebook using opennb:

uvx --with "pipefunc[docs]" opennb pipefunc/pipefunc/docs/source/examples/sensor-data-processing.md

This command creates an ephemeral environment with all dependencies and launches the notebook in your browser in 1 second - no manual setup needed! ✨.

Alternatively, run:

uv run https://raw.githubusercontent.com/pipefunc/pipefunc/refs/heads/main/get-notebooks.py

to download all documentation as Jupyter notebooks.

Note

This example uses scipy and seaborn libraries for data processing and visualization. Make sure to install these libraries before running the code.

Let’s create a detailed example for the sensor data processing pipeline. This example will simulate the following steps:

1. Data Collection: Simulate raw sensor data.

2. Noise Filtering: Apply a basic noise filter.

3. Feature Extraction: Extract features such as peak values.

4. Anomaly Detection: Identify anomalies within the extracted features.

5. Visualization: Plot the results.

Here’s how this pipeline can be implemented using pipefunc:

import matplotlib.pyplot as plt
import numpy as np
from scipy.signal import find_peaks

from pipefunc import Pipeline, pipefunc


# Step 1: Simulate Sensor Data
@pipefunc(output_name="raw_data")
def collect_data(num_samples: int = 1000, noise_level: float = 0.1):
    time = np.linspace(0, 100, num_samples)
    data = np.sin(time) + noise_level * np.random.randn(num_samples)
    return time, data


# Step 2: Noise Filtering
@pipefunc(output_name="filtered_data")
def filter_noise(raw_data):
    time, data = raw_data
    # Simple moving average filter
    window_size = 5
    filtered_data = np.convolve(data, np.ones(window_size) / window_size, mode="valid")
    adjusted_time = time[: len(filtered_data)]
    return adjusted_time, filtered_data


# Step 3: Feature Extraction
@pipefunc(output_name=("peak_times", "peak_values"))
def extract_features(filtered_data):
    time, data = filtered_data
    # Find peaks in the data
    peaks, _ = find_peaks(data, height=0)
    peak_times = time[peaks]
    peak_values = data[peaks]
    return peak_times, peak_values


# Step 4: Anomaly Detection
@pipefunc(output_name=("anomaly_times", "anomaly_values"))
def detect_anomalies(peak_times, peak_values, threshold: float = 0.8):
    # Simple anomaly detection based on threshold
    anomalies = peak_values > threshold
    anomaly_times = peak_times[anomalies]
    anomaly_values = peak_values[anomalies]
    return anomaly_times, anomaly_values


# Step 5: Visualization
@pipefunc(output_name="visualization")
def visualize(raw_data, filtered_data, peak_times, peak_values, anomaly_times, anomaly_values):
    raw_time, raw_data = raw_data
    filt_time, filt_data = filtered_data

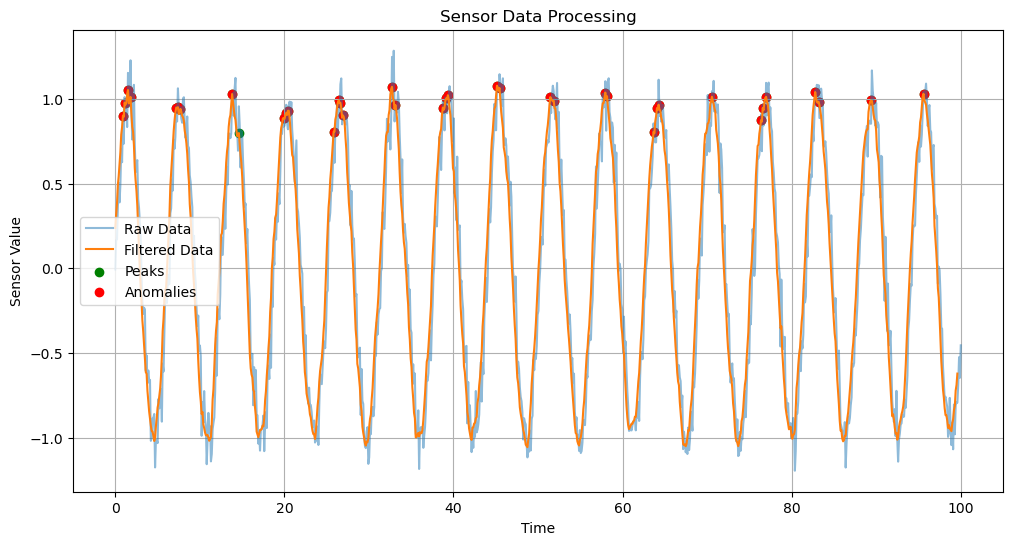

    plt.figure(figsize=(12, 6))
    plt.plot(raw_time, raw_data, label="Raw Data", alpha=0.5)
    plt.plot(filt_time, filt_data, label="Filtered Data")
    plt.scatter(peak_times, peak_values, color="green", label="Peaks")
    plt.scatter(anomaly_times, anomaly_values, color="red", label="Anomalies")
    plt.title("Sensor Data Processing")
    plt.xlabel("Time")
    plt.ylabel("Sensor Value")
    plt.legend()
    plt.grid(visible=True)
    plt.show()


# Create the pipeline
pipeline_sensor = Pipeline(
    [collect_data, filter_noise, extract_features, detect_anomalies, visualize],
)

pipeline_sensor.visualize(orient="TB")

# Run the full pipeline
pipeline_sensor("visualization", num_samples=1000, noise_level=0.1, threshold=0.8)

Explanation:

• Data Collection (collect_data): Simulate time and sine wave data with added Gaussian noise.

• Noise Filtering (filter_noise): Use a simple moving average to smooth the data.

• Feature Extraction (extract_features): Find peaks in the filtered data using scipy.signal.find_peaks.

• Anomaly Detection (detect_anomalies): Identify peaks above a certain threshold as anomalies.

• Visualization (visualize): Plot raw data, filtered data, detected peaks, and anomalies.

Do a study for different noise levels and thresholds:

We can expand the analysis by examining how varying levels of noise and different sample sizes affect the detection of anomalies.

# Create a new pipeline that terminates at the anomaly detection step (so without visualization)
pipeline_sensor2 = pipeline_sensor.subpipeline(output_names={"anomaly_times", "anomaly_values"})

# Also let's add a function to get the number of detected anomalies


@pipefunc(output_name="num_anomalies")
def count_anomalies(anomaly_times):
    return len(anomaly_times)


pipeline_sensor2.add(count_anomalies)

# Add dimensional axes to the input parameters
pipeline_sensor2.add_mapspec_axis("num_samples", axis="i")
pipeline_sensor2.add_mapspec_axis("noise_level", axis="j")

# Run the subpipeline with different configurations
result = pipeline_sensor2.map(
    inputs={"num_samples": [1000, 500, 1000], "noise_level": [0.05, 0.1, 0.2]},
    run_folder="sensor_map_results",
)

Plotting Results for Different Noise Levels and Thresholds:

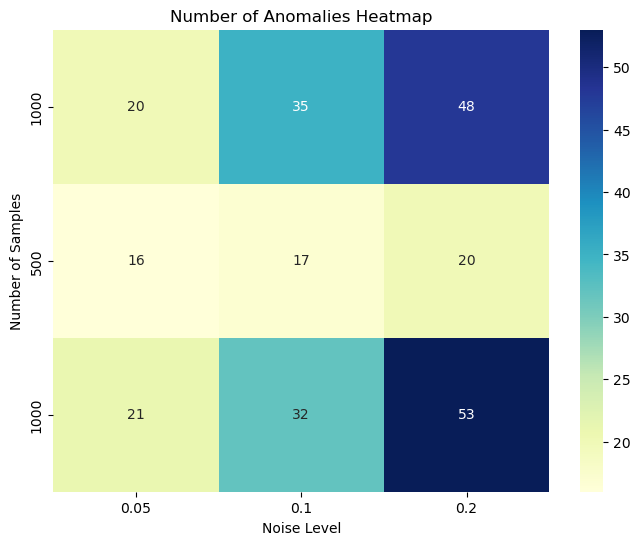

To better understand the relationships and impacts of noise and sample size on anomaly detection, visualize the results with a heatmap.

# Load and visualize the resulting xarray dataset
import seaborn as sns

from pipefunc.map import load_xarray_dataset

ds = load_xarray_dataset("num_anomalies", run_folder="sensor_map_results")

# Convert data variables to a numpy array for plotting
num_anomalies_data = ds["num_anomalies"].data.astype(int)

# Create a heatmap
plt.figure(figsize=(8, 6))
sns.heatmap(
    num_anomalies_data,
    annot=True,
    fmt="d",
    cmap="YlGnBu",
    xticklabels=ds["noise_level"].values,
    yticklabels=ds["num_samples"].values,
)

# Add labels
plt.title("Number of Anomalies Heatmap")
plt.xlabel("Noise Level")
plt.ylabel("Number of Samples")

# Show the plot
plt.show()
